GRAPICS



GRAPICS

graphicsDriver - DETECT

graphicsMode

driverDirectoryPath - BGI files

Colors

16 colors declared in C Graphics

COLOR MACRO	INTEGER VALUE
BLACK	0
BLUE	1
GREEN	2
CYAN	3
RED	4
MAGENTA	5
BROWN	6
LIGHTGRAY	7
DARKGRAY	8
LIGHTBLUE	9
LIGHTGREEN	10
LIGHTCYAN	11
LIGHTRED	12
LIGHTMAGENTA	13
YELLOW	14
WHITE	15



/* C graphics program to draw a line */ #include<stdio.h> #include<graphics.h> #include<conio.h> int main() {     int gd = DETECT, gm;     /* initialization of graphic mode */     initgraph(&gd, &gm, "C:\\Turboc3\\BGI ");     line(100,100,200, 200);     getch();     closegraph();     getch(); } Output





RAINBOW  PROGRAM

#include<stdio.h>

#include<conio.h>

#include<graphics.h>

#include<dos.h>

void main()

{

int gdriver = DETECT,gmode;

int x,y,i;

    initgraph(&gdriver,&gmode,"C:\\Turboc3\\BGI");

   x=getmaxx()/2;

   y=getmaxy()/2;

   for(i=30;i<200;i++)

   {

       delay(100);

       setcolor(i/10);

       arc(x,y,0,180,i-10);

   }

getch();

}

Output

CLOCK

#include<conio.h>

#include<graphics.h>

#include<math.h>

#include<dos.h>



#define WBC 5

//^watchbackcolor

#define X 200

#define Y 200



void dial(int x, int y);

void sechand(int timeminute);



void minhand(int t)

{

int x1,y1;

setlinestyle(0,0,3);



x1= X+ (80 * cos(t*0.1047));

y1= Y+ (80 * sin(t*0.1047));



setcolor(BLACK);

line( X, Y, x1, y1);



setcolor(WBC+1);

line( X, Y, X+ 80 * cos((t-1)*0.1047),Y+ 80 * sin((t-1)*0.1047));

circle(X,Y,4);

}



void sechand(int t)

{

int x1,y1;

setlinestyle(0,0,3);



x1= X+(100 * cos(t*0.1047));

y1= Y+(100 * sin(t*0.1047));



setcolor(RED);

line(X, Y, x1, y1);



setcolor(WBC+1);

line(X, Y, X+ 100 * cos((t-1)*0.1047),Y+ 100 * sin((t-1)*0.1047));



circle(X,Y,4);

}



void dial(int x,int y)

{

int const size=200;



setfillstyle(1,WBC);

fillellipse(x,y,size,size);



setfillstyle(1,WBC+1);

fillellipse(x,y,size-20,size-20);



outtextxy(x,y-(size-40),"12");

outtextxy(x,y+(size-40),"6");

outtextxy(x+(size-40),y,"3");

outtextxy(x-(size-40),y,"9");

outtextxy(x+size/3,y-2*size/3,"1");

outtextxy(x+2*size/3,y-size/3,"2");

outtextxy(x+2*size/3,y+size/3,"4");

outtextxy(x+size/3,y+2*size/3,"5");

outtextxy(x-size/3,y+2*size/3,"7");

outtextxy(x-2*size/3,y+size/3,"8");

outtextxy(x-size/3,y-2*size/3,"11");

outtextxy(x-2*size/3,y-size/3,"10");



circle(x,y,4);

}



void main()

{

int gd=DETECT, gm,i,j, flag=1;

initgraph(&gd,&gm,"C:\\turboc3\\bgi");



dial(200,200);

do

{

minhand(i);

for(j=0;j<60;j++)

{

sechand(j);

delay(1000

);

if(kbhit()) {

flag =0;

break;

}

}

i++;

}while(flag);

closegraph();

}

Output

C Graphics Programs



CIRCLE

#include<stdio.h>

#include<conio.h>

#include<graphics.h>



main(){

   int gd = DETECT,gm;

   int x ,y ,radius=80;

   initgraph(&gd, &gm, " C:\\Turboc3\\BGI ");

   /* Initialize center of circle with center of screen */

   x = getmaxx()/2;

   y = getmaxy()/2;



   outtextxy(x-100, 50, "CIRCLE Using Graphics in C");

   /* Draw circle on screen */

   circle(x, y, radius);



   closegraph();

   getch();

}

Output





RECTANGLE & SOLID BAR

#include <stdio.h>

#include<conio.h>

#include<graphics.h>



main(){

   int gd = DETECT,gm;

   initgraph(&gd, &gm, "C:\\Turboc3\\BGI");



   /* Draw rectangle on screen */

   rectangle(150, 50, 400, 150);



   /* Draw Bar on screen */

   bar(150, 200, 400, 350);



   closegraph();

   getch();

}

 Output





ECLIPSE



#include <stdio.h>

#include<conio.h>

#include<graphics.h>



main(){

   int gd = DETECT,gm;

   int x ,y;

   initgraph(&gd, &gm, "C:\\Turboc3\\BGI");

   /* Initialize center of ellipse with center of screen */

   x = getmaxx()/2;

   y = getmaxy()/2;



   outtextxy(x-100, 50, "ELLIPSE Using Graphics in C");

   /* Draw ellipse on screen */

   ellipse(x, y, 0, 360, 120, 60);



   closegraph();

   getch();

}

 Output



CONCENTRIC CIRCLES

#include <stdio.h>

#include<conio.h>

#include<graphics.h>



main(){

   int gd = DETECT,gm;

   int x ,y;

   initgraph(&gd, &gm, "C:\\Turboc3\\BGI");

   /* Initialize center of circle with center of screen */

   x = getmaxx()/2;

   y = getmaxy()/2;



   outtextxy(240, 50, "Concentric Circles");

   /* Draw circles on screen */

   setcolor(RED);

   circle(x, y, 30);

   setcolor(GREEN);

   circle(x, y, 50);

   setcolor(YELLOW);

   circle(x, y, 70);

   setcolor(BLUE);

   circle(x, y, 90);



   closegraph();

getch();

}

 Output

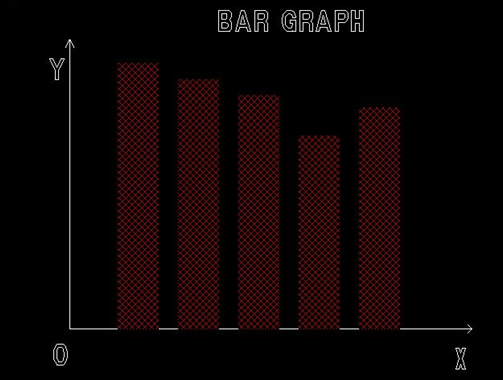

BAR GRAPH

#include <stdio.h>

#include<conio.h>

#include <graphics.h>



main() {

   int gd = DETECT, gm;

   initgraph(&gd, &gm, "C:\\Turboc3\\BGI");



   settextstyle(BOLD_FONT,HORIZ_DIR,2);

   outtextxy(275,0,"BAR GRAPH");



   setlinestyle(SOLID_LINE,0,2);

   /* Draw X and Y Axis */

   line(90,410,90,50);

   line(90,410,590,410);

   line(85,60,90,50);

   line(95,60,90,50);

   line(585,405,590,410);

   line(585,415,590,410);



   outtextxy(65,60,"Y");

   outtextxy(570,420,"X");

   outtextxy(70,415,"O");

   /* Draw bars on screen */

   setfillstyle(XHATCH_FILL, RED);

   bar(150,80,200,410);

   bar(225,100,275,410);

   bar(300,120,350,410);

   bar(375,170,425,410);

   bar(450,135,500,410);



   closegraph();

getch();

}

 Output





3D BAR GRAPH

#include <stdio.h>

#include<conio.h>

#include <graphics.h>



main() {

   int gd = DETECT, gm;

   initgraph(&gd, &gm, "C:\\Turboc3\\BGI");



   settextstyle(BOLD_FONT,HORIZ_DIR,2);

   outtextxy(275,0,"3D BAR GRAPH");



   setlinestyle(SOLID_LINE,0,2);

   /* Print X and Y Axis */

   line(90,410,90,50);

   line(90,410,590,410);

   line(85,60,90,50);

   line(95,60,90,50);

   line(585,405,590,410);

   line(585,415,590,410);



   outtextxy(65,60,"Y");

   outtextxy(570,420,"X");

   outtextxy(70,415,"O");



   /* Print 3D bars */

   setfillstyle(XHATCH_FILL, RED);

   bar3d(150,80,200,410, 15, 1);

   bar3d(225,100,275,410, 15, 1);

   bar3d(300,120,350,410, 15, 1);

   bar3d(375,170,425,410, 15, 1);

   bar3d(450,135,500,410, 15, 1);



   closegraph();

getch();

}

 Output



SINE WAVE

#include <stdio.h>

#include<conio.h>

#include <math.h>

#include <graphics.h>

#include <dos.h>



main() {

    int gd = DETECT, gm;

    int angle = 0;

    double x, y;



    initgraph(&gd, &gm, "C:\\Turboc3\\BGI");



 line(0, getmaxy() / 2, getmaxx(), getmaxy() / 2);

 /* generate a sine wave */

 for(x = 0; x < getmaxx(); x+=3) {



     /* calculate y value given x */

     y = 50*sin(angle*3.141/180);

     y = getmaxy()/2 - y;



     /* color a pixel at the given position */

  putpixel(x, y, 15);

  delay(100);



  /* increment angle */

  angle+=5;

 }



 closegraph();



getch();

}

 Output

PIE CHART



#include <stdio.h>

#include<conio.h>



#include<graphics.h>



main() {

   int gd = DETECT, gm, x, y;

   initgraph(&gd, &gm, "C:\\Turboc3\\BGI");



   settextstyle(BOLD_FONT,HORIZ_DIR,2);

   outtextxy(220,10,"PIE CHART");

   /* Setting cordinate of center of circle */

   x = getmaxx()/2;

   y = getmaxy()/2;



   settextstyle(SANS_SERIF_FONT,HORIZ_DIR,1);

   setfillstyle(SOLID_FILL, RED);

   pieslice(x, y, 0, 60, 120);

   outtextxy(x + 140, y - 70, "FOOD");



   setfillstyle(SOLID_FILL, YELLOW);

   pieslice(x, y, 60, 160, 120);

   outtextxy(x - 30, y - 170, "RENT");



   setfillstyle(SOLID_FILL, GREEN);

   pieslice(x, y, 160, 220, 120);

   outtextxy(x - 250, y, "ELECTRICITY");



   setfillstyle(SOLID_FILL, BROWN);

   pieslice(x, y, 220, 360, 120);

   outtextxy(x, y + 150, "SAVINGS");



   closegraph();

getch();

}

 Output



DIGITAL CLOCK

#include <stdio.h>

#include<conio.h>

#include <graphics.h>

#include <time.h>

#include <dos.h>

#include <string.h>



main() {

    int gd = DETECT, gm;

    int midx, midy;

    long current_time;

    char timeStr[256];



    initgraph(&gd, &gm, "C:\\Turboc3\\BGI");



    /* mid pixel in horizontal and vertical axis */

    midx = getmaxx() / 2;

    midy = getmaxy() / 2;



    while (!kbhit()) {

        cleardevice();

        setcolor(WHITE);

        setfillstyle(SOLID_FILL, WHITE);

        rectangle(midx - 250, midy - 40, midx + 250, midy + 40);

        floodfill(midx, midy, WHITE);

        /* Get Current epoch time in seconds */

        current_time = time(NULL);

        /* store the date and time in string */

        strcpy(timeStr, ctime(&current_time));

        setcolor(RED);

        settextjustify(CENTER_TEXT, CENTER_TEXT);

        settextstyle(SANS_SERIF_FONT, HORIZ_DIR, 4);



        moveto(midx, midy);

        /* print current time */

        outtext(timeStr);

        /* Add delay of 1000 milliseconds(1 second) */

        delay(1000);

    }



    closegraph();

    getch();

}

 Output



BOUNCING BALL ANIMATION

#include <stdio.h>

#include<conio.h>

#include <graphics.h>

#include <dos.h>

 main() {

 int gd = DETECT, gm;

 int i, x, y, flag=0;

 initgraph(&gd, &gm, "C:\\Turboc3\\BGI");



 /* get mid positions in x and y-axis */

 x = getmaxx()/2;

 y = 30;





 while (!kbhit()) {

  if(y >= getmaxy()-30 || y <= 30)

     flag = !flag;

     /* draws the gray board */

     setcolor(RED);

     setfillstyle(SOLID_FILL, RED);

     circle(x, y, 30);

     floodfill(x, y, RED);



 /* delay for 50 milli seconds */

 delay(50);



 /* clears screen */

 cleardevice();

 if(flag){

     y = y + 5;

 } else {

     y = y - 5;

 }

    }



    closegraph();

getch();

}

Output



MOVING CAR ANIMATION

#include <stdio.h>

#include<conio.h>

#include <graphics.h>

#include <dos.h>



main() {

    int gd = DETECT, gm;

    int i, maxx, midy;



    /* initialize graphic mode */

    initgraph(&gd, &gm, "X:\\TC\\BGI");

    /* maximum pixel in horizontal axis */

    maxx = getmaxx();

    /* mid pixel in vertical axis */

    midy = getmaxy()/2;



    for (i=0; i < maxx-150; i=i+5) {

        /* clears screen */

        cleardevice();



        /* draw a white road */

        setcolor(WHITE);

        line(0, midy + 37, maxx, midy + 37);



        /* Draw Car */

        setcolor(YELLOW);

        setfillstyle(SOLID_FILL, RED);



        line(i, midy + 23, i, midy);

        line(i, midy, 40 + i, midy - 20);

        line(40 + i, midy - 20, 80 + i, midy - 20);

        line(80 + i, midy - 20, 100 + i, midy);

        line(100 + i, midy, 120 + i, midy);

        line(120 + i, midy, 120 + i, midy + 23);

        line(0 + i, midy + 23, 18 + i, midy + 23);

        arc(30 + i, midy + 23, 0, 180, 12);

        line(42 + i, midy + 23, 78 + i, midy + 23);

        arc(90 + i, midy + 23, 0, 180, 12);

        line(102 + i, midy + 23, 120 + i, midy + 23);

        line(28 + i, midy, 43 + i, midy - 15);

        line(43 + i, midy - 15, 57 + i, midy - 15);

        line(57 + i, midy - 15, 57 + i, midy);

        line(57 + i, midy, 28 + i, midy);

        line(62 + i, midy - 15, 77 + i, midy - 15);

        line(77 + i, midy - 15, 92 + i, midy);

        line(92 + i, midy, 62 + i, midy);

        line(62 + i, midy, 62 + i, midy - 15);

        floodfill(5 + i, midy + 22, YELLOW);

        setcolor(BLUE);

        setfillstyle(SOLID_FILL, DARKGRAY);

        /*  Draw Wheels */

        circle(30 + i, midy + 25, 9);

        circle(90 + i, midy + 25, 9);

        floodfill(30 + i, midy + 25, BLUE);

        floodfill(90 + i, midy + 25, BLUE);

        /* Add delay of 0.1 milli seconds */

        delay(100);

    }



    closegraph();

    getch();

}



Output

Snake game in C

#include <graphics.h>

#include <stdlib.h>

#include <dos.h>

#include <conio.h>

#include <stdio.h>

#include <time.h>

check();

end();

win();

int m[500],n[500],con=20;

clock_t start,stop;

void main(void)

{

int gd=DETECT,gm,ch,maxx,maxy,x=13,y=14,p,q,spd=100,temp,a=0,i=0,j,t;

initgraph(&gd,&gm,"c:\\Turboc3\\BGI");

setcolor(WHITE);

settextstyle(3,0,6);

outtextxy(200,2," SNAKE 2 ");

settextstyle(6,0,2);

outtextxy(20,80," Use Arrow Keys To Direct The Snake ");

outtextxy(20,140," Avoid The Head Of Snake Not To Hit Any Part Of Snake");

outtextxy(20,160," Pick The Beats Untill You Win The Game ");

outtextxy(20,200," Press 'Esc' Anytime To Exit ");

outtextxy(20,220," Press Any Key To Continue ");

ch=getch();

if(ch==27) exit(0);

cleardevice();

maxx=getmaxx();

maxy=getmaxy();

randomize();

p=random(maxx);

temp=p%13;

p=p-temp;

q=random(maxy);

temp=q%14;

q=q-temp;

 start=clock();

while(1)

{

 setcolor(WHITE);

 setfillstyle(SOLID_FILL,con+5);

 circle(p,q,5);

 floodfill(p,q,WHITE);

   if( kbhit() )

   {

     ch=getch(); if(ch==0) ch=getch();

     if(ch==72&& a!=2) a=1;

     if(ch==80&& a!=1) a=2;

     if(ch==75&& a!=4) a=3;

     if(ch==77&& a!=3) a=4;

      }

       else

     {

     if(ch==27

     ) break;

     }

       if(i<20){

   m[i]=x;

   n[i]=y;

   i++;

       }

if(i>=20)

{

  for(j=con;j>=0;j--){

  m[1+j]=m[j];

  n[1+j]=n[j];

  }

   m[0]=x;

   n[0]=y;

   setcolor(WHITE);

   setfillstyle(SOLID_FILL,con);

   circle(m[0],n[0],8);

   floodfill(m[0],n[0],WHITE);

   setcolor(WHITE);

   for(j=1;j<con;j++){

  setfillstyle(SOLID_FILL,con+j%3);

   circle(m[j],n[j],5);

   floodfill(m[j],n[j],WHITE);

      }

       delay(spd);

  setcolor(BLACK);

  setfillstyle(SOLID_FILL,BLACK);

   circle(m[0],n[0],8);

   floodfill(m[0],n[0],BLACK);

   setcolor(BLACK);

  setfillstyle(SOLID_FILL,BLACK);

   circle(m[j],n[j],5);

   floodfill(m[j],n[j],BLACK);

   }

     stop=clock();

     t=(stop-start)/CLK_TCK;

   //  printf(" TIME %d sec   ",t);

    // printf("SCORE %d",con-5);

     check();

    if(x==p&&y==q) { con=con+5; if(spd>=5) spd=spd-5; else spd=5;

      if(con>490) win();

     p=random(maxx); temp=p%13;  p=p-temp;

     q=random(maxy); temp=q%14;   q=q-temp;

    }

    if(a==1)  y =  y-14; if(y<0) { temp=maxy%14;y=maxy-temp;}

    if(a==2)  y =  y+14; if(y>maxy) y=0;

    if(a==3)  x =  x-13; if(x<0) { temp=maxx%13;x=maxx-temp;}

    if(a==4)  x =  x+13; if(x>maxx) x=0;

    if(a==0){  y = y+14 ;  x=x+13; }

}

 }

check(){

   int a;

   for(a=1;a<con;a++)

if(m[0]==m[a] && n[0]==n[a]) end();

   else continue;

   }

end()

{

    int j,i;

   setcolor(WHITE);

   for(i=0;i<5;i++){

   delay(500);

    cleardevice();

    delay(500);

   for(j=0;j<=con;j++){

   setfillstyle(SOLID_FILL,RED);

   circle(m[j],n[j],5);

   floodfill(m[j],n[j],WHITE);

  }

}

    settextstyle(3,0,4);

    outtextxy(150,150,"    GAME OVER ");

    getch();

    getch();

    exit(0);

    }

win()

{

int j,i;

setcolor(WHITE);

   for(i=0;i<5;i++){

   for(j=0;j<=con;j++){

   setfillstyle(SOLID_FILL,con);

   circle(m[j],n[j],5);

   floodfill(m[j],n[j],WHITE);

  }

    delay(500);

    cleardevice();

    delay(500);

}

  settextstyle(3,0,4);

  outtextxy(210,320," YOU WIN ");

  getch();

  exit(0);

}

Output

Tetris game in C

#include<stdio.h>

#include<stdlib.h>

#include<graphics.h>

#include<time.h>

//The tetris matrix (2d array)

int board[35][13];

//Different versions of T block (rotated)

int t_[8]={1,0,1,1,1,2,2,1};

int t_90[8]={0,1,1,0,1,1,2,1};

int t_180[8]={0,1,1,0,1,1,1,2};

int t_270[8]={0,1,1,1,1,2,2,1};

//Different versions of L block (rotated)

int l_[8]={0,2,1,0,1,1,1,2};

int l_90[8]={0,1,1,1,2,1,2,2};

int l_180[8]={1,0,1,1,1,2,2,0};

int l_270[8]={0,0,0,1,1,1,2,1};

//S block

int s_[8]={0,0,0,1,1,0,1,1};

//Different versions of Z block

int z_[8]={1,1,1,2,2,0,2,1};

int z_90[8]={0,1,1,1,1,2,2,2};

//Different versions of I block

int i_ver[8]={0,1,1,1,2,1,3,1};

int i_hor[8]={1,0,1,1,1,2,1,3};

//score as string

char * scorestr;

/*

Numbering for type of blocks:

(values of fallingBlockNumber)

0=T

1=L

2=S

3=Z

4=I

*/

//pointer to current falling block type array

int *blockarray;

int fallingblockNum;

int fallingBlockVersion=0;//values 0 to 4

int fallingBlockRow=0;//the current row of falling block

int fallingBlockCol=0;//the current column of falling block

int startdelay=200;

int motiondelay;

int scoreInc=5;//score for each line clearance

int myscore=0;//score

//spawning next falling block

void NextBlock()

{

fallingblockNum=rand()%5;

if(fallingblockNum==0||fallingblockNum==1)

 fallingBlockVersion=rand()%4;

else if(fallingblockNum==4||fallingblockNum==3)

 fallingBlockVersion=rand()%2;

else

 fallingBlockVersion=0;

fallingBlockRow=0;

fallingBlockCol=5;

}

//store pointer to current falling block's array in *blockarray;

int *getFallingBlockArray()

{

int a=fallingblockNum*10+fallingBlockVersion;

switch(a)

    {

    case 0:return ((int*)&t_);

    case 1:return ((int*)&t_90);

    case 2:return ((int*)&t_180);

    case 3:return ((int*)&t_270);

    case 10:return ((int*)&l_);

    case 11:return ((int*)&l_90);

    case 12:return ((int*)&l_180);

    case 13:return ((int*)&l_270);

    case 20:return ((int*)&s_);

    case 30:return ((int*)&z_);

    case 31:return ((int*)&z_90);

    case 40:return ((int*)&i_hor);

    case 41:return ((int*)&i_ver);

    }

return ((int*)&i_ver);

}

/* To check if moving to left or right

or rotation of falling block is feasible.

i.e to check whether there is enough space around it.

*/

int isDrawable(int newrow,int newcol,int blockversion)

{

int i,tempversion,flag=1;;

tempversion=fallingBlockVersion;

fallingBlockVersion=blockversion;

blockarray=getFallingBlockArray();

for(i=0;i<8;i+=2)

    {

//check if block goes out of the matrix (up or down)

if(newrow+blockarray[i]>34||newrow+blockarray[i]<0)

 {

 flag=0;

 break;

 }

//check if block goes out of the matrix (left or right)

if(newcol+blockarray[i+1]>12||newcol+blockarray[i+1]<0)

 {

 flag=0;

 break;

 }

//check if there is any obstacle on the proposed position

if(board[(newrow+blockarray[i])][(newcol+blockarray[i+1])]==2)

 {

 flag=0;

 break;

 }

    }

fallingBlockVersion=tempversion;

blockarray=getFallingBlockArray();

return flag;

}

/*

To clear the old position of falling block

after it moves to a new position (row/column change)

or after it is rotated

*/

void clearOldBlockVersion()

{

int i,r,c;

for(i=0;i<8;i+=2)

 {

 r=fallingBlockRow+blockarray[i];

 c=fallingBlockCol+blockarray[i+1];

 board[r][c]=0;

 setfillstyle(EMPTY_FILL,BLACK);

 setcolor(BLACK);

 bar(2+c*13,2+r*13,2+c*13+13,2+r*13+13);

 rectangle(2+c*13,2+r*13,2+c*13+13,2+r*13+13);

 }

}

/*

To draw the new picture

after it moves to a new position (row/column change)

or after it is rotated

*/

void drawNewBlockVersion()

{

int i,r,c;

for(i=0;i<8;i+=2)

 {

 r=fallingBlockRow+blockarray[i];

 c=fallingBlockCol+blockarray[i+1];

 board[r][c]=1;

 setfillstyle(XHATCH_FILL,CYAN);

 setcolor(RED);

 bar(2+c*13,2+r*13,2+c*13+13,2+r*13+13);

 rectangle(2+c*13,2+r*13,2+c*13+13,2+r*13+13);

 }

}

/*

To check whether game is over.

called after every move.

Game is over when tetris matrix is filled.

*/

int isGameOver()

{

if(isDrawable(0,5,fallingBlockVersion)==0)

    return 1;

drawNewBlockVersion();

if(isAtBottom())

    return 1;

return 0;

}

/*

To check if falling block reached the bottom

*/

int isAtBottom()

{

int i,max=0,ti,tj;

for(i=0;i<8;i+=2)

    if(*(blockarray+i)>max)

 max=*(blockarray+i);

if(fallingBlockRow+max>=34)

 return 1;

for(i=0;i<8;i+=2)

    {

    ti=*(blockarray+i)+fallingBlockRow;

    tj=*(blockarray+i+1)+fallingBlockCol;

    if(board[ti+1][tj]==2)

       return 1;

    }

return 0;

}

/*

Draw score on screen

*/

void showScore()

{

int left,top;

setcolor(BLACK);

setfillstyle(EMPTY_FILL,BLACK);

left=getmaxx()-100;

top=getmaxy()/2;

bar3d(left,top,left+60,top+70,2,1);

setcolor(CYAN);

settextstyle(TRIPLEX_FONT, HORIZ_DIR,2);

outtextxy(getmaxx()-100,getmaxy()/2,"Score: ");

outtextxy(getmaxx()-100,getmaxy()/2+20,itoa(myscore,scorestr,10));

}

/*

To clear any row that is fully filled and increment score.

Also settles rows over the cleared row down.

*/

void CollapseFullRow()

{

int i,j,k,sum,copyskipover=0,r;

for(i=34;i>=0;)

    {

    sum=0;//full flag

    for(j=0;j<13;j++)

 sum+=board[i][j];

    if(sum==2*13)//row full

 {

 myscore+=scoreInc;

 copyskipover++;

 }

    if(sum==0)

 break;

    i--;

    if(copyskipover>0)

 {

 for(j=0;j<13;j++)

     {

     r=i+copyskipover;

     board[r][j]=board[i][j];

     if(board[i][j]==0)

  {

  setfillstyle(SOLID_FILL, RED);//empty yo hatch

  setcolor(BLACK);

  bar(2+j*13,2+r*13,2+j*13+13,2+r*13+13);

  }

     else

  {

  setfillstyle(SOLID_FILL, RED);

  setcolor(WHITE);

  bar(2+j*13,2+r*13,2+j*13+13,2+r*13+13);

  rectangle(2+j*13,2+r*13,2+j*13+13,2+r*13+13);

  }

     }

 }

    }

for(k=0;k<copyskipover;k++)

    {

    r=i+k;

    for(j=0;j<13;j++)

 {

 board[r][j]=0;

 setfillstyle(XHATCH_FILL,BLACK);

 setcolor(BLACK);

 bar(2+j*13,2+r*13,2+j*13+13,2+r*13+13);

 }

    }

showScore();

}

//function to display game over and end game

void GameOver();

void main()

{

int scorespeedctrl=0;

char arrowpre,ch,timehalving=0;

int gd=DETECT,gm,i,j,k=1,spawn=1,tversion;

motiondelay=startdelay;

scorestr=(char*)malloc(sizeof(char)*10);

for(i=0;i<35;i++)

    for(j=0;j<13;j++)

 board[i][j]=0;

/*

to get the ascii characters for up arrow key.

When any of arrow key is pressed, two characters

are sent to buffer. The first one may be different

on different compilers and systems.

The second one is of value 72 for up arrow.

*/

while(k!=72)

{

printf("press 'up' arrow key to start\n");

arrowpre=getch();

if(kbhit())

 k=getch();

}

initgraph(&gd,&gm,"C:\\TURBOC3\\BGI\\");

cleardevice();

setcolor(YELLOW);

rectangle(0,0,13*13+6,35*13+6);

srand(time(NULL));

showScore();

setcolor(RED);

settextstyle(SMALL_FONT, HORIZ_DIR,6);

outtextxy(getmaxx()-200,getmaxy()/2-100,"Press 'Q' to quit.");

while(ch!='q'&&ch!='Q'&&k!='q'&&k!='Q')

    {

    if(kbhit()&&spawn==0)

 {

 ch=getch();

 if(ch==arrowpre)//if an arrow key pressed

     {

     k=getch();

     if(k==72)//if up arrow key is pressed

  {

  if(fallingblockNum==0||fallingblockNum==1)

      tversion=(fallingBlockVersion+1)%4;

  else if(fallingblockNum==4||fallingblockNum==3)

      tversion=(fallingBlockVersion+1)%2;

  if(fallingblockNum!=2&&isDrawable(fallingBlockRow,fallingBlockCol,tversion))

      {

      clearOldBlockVersion();

      fallingBlockVersion=tversion;

      blockarray=getFallingBlockArray();

      drawNewBlockVersion();

      }

  }

     else if(k==75)//if left arrow key is pressed

  {

  if(isDrawable(fallingBlockRow,fallingBlockCol-1,fallingBlockVersion))

      {

      clearOldBlockVersion();

      fallingBlockCol--;

      drawNewBlockVersion();

      }

  }

     else if(k==77)//if right arrow key is pressed

  {

  if(isDrawable(fallingBlockRow,fallingBlockCol+1,fallingBlockVersion))

      {

      clearOldBlockVersion();

      fallingBlockCol++;

      drawNewBlockVersion();

      }

  }

     else if(k==80)//if down arrow key is pressed

  {

  if(isDrawable(fallingBlockRow+1,fallingBlockCol,fallingBlockVersion))

      {

      clearOldBlockVersion();

      fallingBlockRow++;

      drawNewBlockVersion();

      }

  }

     while(kbhit())

  getch();

     }

 }

    if(isAtBottom()&&spawn==0)

 {

 for(i=0;i<8;i+=2)

     {

     board[fallingBlockRow+blockarray[i]][fallingBlockCol+blockarray[i+1]]=2;

     }

 spawn=1;

 CollapseFullRow();

 }

    if(spawn)

 {

 NextBlock();

 blockarray=getFallingBlockArray();

 spawn=0;

 if(isGameOver())

     {

     GameOver();

     return;

     }

 }

    else

 {

 timehalving=(timehalving+1)%3;

 if(timehalving==2)

  {

  clearOldBlockVersion();

  fallingBlockRow++;

  drawNewBlockVersion();

  }

 }

    scorespeedctrl=(scorespeedctrl+1)%280;

    if(scorespeedctrl==0)

 {

 motiondelay-=8;

 scoreInc++;

 }

    delay(motiondelay);

    }

}

void GameOver()

{

static int style=TRIPLEX_FONT;

static int size = 4;

setcolor(YELLOW);

settextjustify(CENTER_TEXT, CENTER_TEXT);

settextstyle(style, HORIZ_DIR, size);

outtextxy(getmaxx()/2-10,getmaxy()/2,"Game Over.\n");

getch();

main();

}

Output
